Schneider Electric
single function relay, Harmony Timer Relays, 5A, 1 CO, 0.05s…10min, delay on de energization, 24...240V AC DC
SKU: RE22R1KMR
Enter your zip code to see prices
Delivery of products may differ based on your Zip code
Diagnostic button to check downstream circuit immediately, shorten the commission and troubleshooting time
Wide range of time delay for adjustment: from 0.01 s to 999 hrs
Compatible with a wide range of applications including machines, buildings, water segments, and HVAC
Environmental Data
Harmony Time
Diagnostic button to check downstream circuit immediately, shorten the commission and troubleshooting time
Wide range of time delay for adjustment: from 0.01 s to 999 hrs
Compatible with a wide range of applications including machines, buildings, water segments, and HVAC
Unprecedented accuracy, predictive maintenance, and superior security
Flexible choice of screw or spring connection terminals for wiring

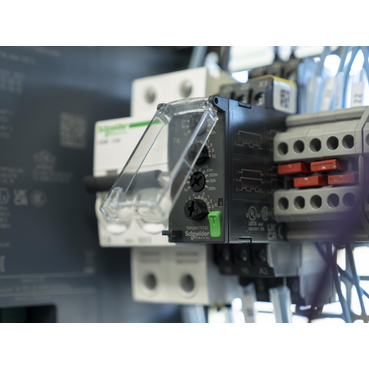

This Harmony RE22 modular single function timer can be set between 1 seconds and 300 hours, has an output rating of 5 amperes and it is 22.5 millimeters wide. This modular single function timing relay is ideal for providing timing control in automation systems such as automatic door opening, alarm, lighting in toilets and car park barriers. It has one of market slimmest form-factors with 22.5mm width, allowing for a flexible and easy installation on DIN rail, using the same space as any modular 2-pole DIN device. Single function timer for a simple integration in hard-wired logic schematics, ideal for refurbishment of old installations without using a PLC.
Main
Range of Product
Harmony Timer Relays
Discrete output type
Relay
Product or Component Type
Modular timing relay
Device short name
RE22
nominal output current
5 A
Complementary
Contacts type and composition
1 C/O timed contact, cadmium free
Time delay type
Delay on de-energization
Time delay range
Control type
Rotary knob
[Us] rated supply voltage
24...240 V AC/DC 50/60 Hz
Release input voltage
<= 2.4 V
Voltage range
0.85...1.1 Us
Supply frequency
50...60 Hz +/- 5 %
Connections - terminals
Tightening torque
5.3…8.9 lbf.in (0.6…1 N.m) IEC 60947-1
Housing material
Polycarbonate
Repeat accuracy
+/- 0.5 % IEC 61812-1
Temperature Drift
+/- 0.05 %/°C
Voltage drift
+/- 0.2 %/V
Setting accuracy of time delay
+/- 10 % of full scale 25 °C IEC 61812-1
Time delay type
Off-delay - K-Delay on de-energization (without auxiliary supply)
Insulation resistance
100 MOhm 500 V DC IEC 60664-1
Recovery time
100 ms on de-energisation
Immunity to microbreaks
10 ms
Power consumption in VA
3 VA 240 V AC
Power consumption in W
2 W 240 V DC
Switching capacity in VA
1250 VA
Minimum switching current
10 mA 5 V DC
Maximum switching current
5 A
Maximum switching voltage
250 V AC
Electrical durability
Mechanical durability
10000000 cycles
Rated impulse withstand voltage
5 kV 1.2…50 µs IEC 60664-1
Power on delay
350 ms
Creepage distance
4 kV/3 IEC 60664-1
Overvoltage category
III conforming to IEC 60664-1
Safety reliability data
Mounting position
Any position
Mounting support
35 mm DIN rail conforming to IEC 60715
Status LED
Function available
K-Delay on de-energization (without auxiliary supply)-1 C/O
Width
0.9 in (22.5 mm)
Net Weight
0.2 lb(US) (0.1 kg)
Control Type
With test button
Number of functions
1
Environmental footprint
Total lifecycle Carbon footprint
5 kg CO2 eq.
Environmental Disclosure
Product Environmental ProfileCarbon footprint of the manufacturing phase [A1 to A3]
2 kg CO2 eq.
Carbon footprint of the distribution phase [A4]
0 kg CO2 eq.
Carbon footprint of the installation phase [A5]
0 kg CO2 eq.
Carbon footprint of the use phase [B2, B3, B4, B6]
3 kg CO2 eq.
Carbon footprint of the end-of-life phase [C1 to C4]
0.1 kg CO2 eq.
Use Better
Materials and Substances
Packaging made with recycled cardboard
Yes
Packaging without single use plastic
Yes
Pro-active compliance (Product out of EU RoHS legal scope)
SCIP Number
7bdc2711-0ad2-427c-8ece-532c5e9f09d7
REACh Regulation
REACh DeclarationCalifornia proposition 65
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Use Longer
Lifetime extension
Repair
No
Use Again
Repack and remanufacture
Circularity Profile
End of Life InformationTake-back
No
