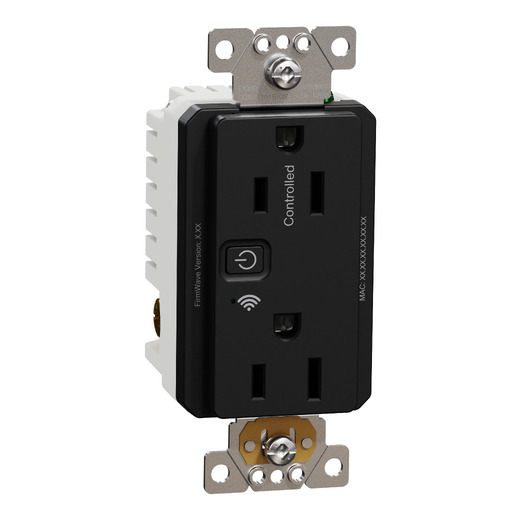

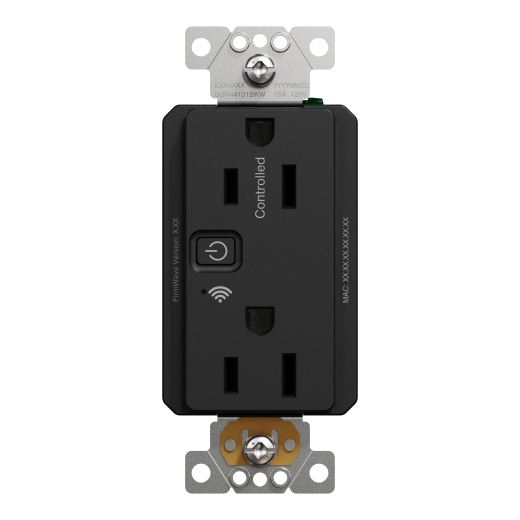

Socket-outlet, X Series, 15A, decorator, tamper resistant, Wi-Fi connected, black, matte finish

Are You A Professional?

SQR441U1BKW

Socket-outlet, X Series, 15A, decorator, tamper resistant, Wi-Fi connected, black, matte finish

0 Reviews

$38.87

X Series 15A 125V Tamper Resistant Wi-Fi Energy Monitoring Duplex Outlet Matte Black
Wi-FI outlet connects directly to the home network - no hub required
Child-safe design, with tamper-resistant shutters
Control remotely via Wi-FI with Wiser Home app
Sold individually
Easy to clean
High-impact resistant and durable thermoplastic for long-lasting product life
Compliant with RoHS directive, for non-hazardous materials
Speed up installation with back pressure plates
Wall plate required, sold separately

View all Specifications

Socket-outlet, X Series, 15A, decorator, tamper resistant, Wi-Fi connected, black, matte finish

undefined}

undefined}

Socket-outlet, X Series, 15A, decorator, tamper resistant, Wi-Fi connected, black, matte finish

undefined}

undefined}

undefined}

undefined}

undefined}

Feel the good energy throughout your home with Schneider.

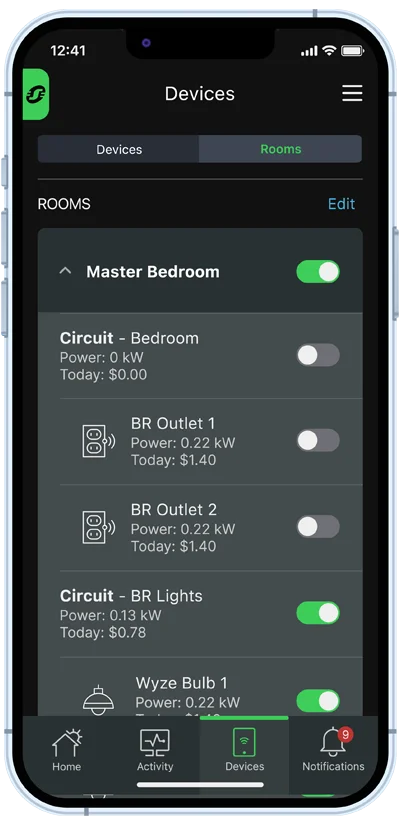

Remote monitoring and control

With connected outlets and switches, control lighting, appliances and more with the Schneider Home app or voice-activate assistants.

Flexible and feature-rich

These switches, sensors, dimmers and outlets set the new benchmark for how today's wiring devices should look and feel.

Fast USB Charging

Charge two devices at once using our faster-than-average outlets with high-amperage USB charging.

Feel the good energy throughout your home with Schneider.

Remote monitoring and control

With connected outlets and switches, control lighting, appliances and more with the Schneider Home app or voice-activate assistants.

Flexible and feature-rich

These switches, sensors, dimmers and outlets set the new benchmark for how today's wiring devices should look and feel.

Fast USB Charging

Charge two devices at once using our faster-than-average outlets with high-amperage USB charging.

Frequently Bought Together

X Series 15A Single Pole/3 Way WiFi Energy Monitoring Rocker Switch Back Wire Clamps Matte White

X Series 1 Gang Standard Size Screwless Wall Plate Matte White

X Series 15A 500W Single Pole Occupancy/Humidity Sensor Light & Fan Control Back Wires Matte White

01

undefined

Frequently Bought Together

01

undefined

X Series 15A Single Pole/3 Way WiFi Energy Monitoring Rocker Switch Back Wire Clamps Matte White X Series 15A Single Pole/3 Way WiFi Energy Monitoring Rocker Switch Back Wire Clamps Matte White

X Series 1 Gang Standard Size Screwless Wall Plate Matte White X Series 1 Gang Standard Size Screwless Wall Plate Matte White

X Series 15A 500W Single Pole Occupancy/Humidity Sensor Light & Fan Control Back Wires Matte White X Series 15A 500W Single Pole Occupancy/Humidity Sensor Light & Fan Control Back Wires Matte White

Specifications

Range

Square D X Series

Product or Component Type

Connected socket-outlet

Aesthetic name

X Series

Device Application

Power supply

Mobile App name

Wiser Home

device presentation

Mechanism with fixing frame

Body type

Decorator

Socket number

2

Outlet poles configuration

2P + E

Outlet standard

NEMA

Socket additional information

Tamper resistant

device mounting

Flush

Mounting Mode

By screws

[Ie] rated operational current AC

15 A

[Ue] rated operational voltage

125 V

Network type

AC

Network Frequency

60 Hz

Communication network type

Wi-Fi 2.4 GHz), 10 mW < 50 m

Number of gangs

1 gang

Color

Black

Surface Finish

Matte

Material

Plastic: strap
Metal: fixing frame

Connections - terminals

Phase and neutral 2 screw terminal AWG 14...AWG 12) copper
Earth 1 screw terminal copper

earth circuit

Self earthing

Width

1.73 in (44 mm)

Height

4.06 in (103 mm)

Depth

1.73 in (44 mm)

Quantity per Set

1 piece

Category

US10DE909930

Discount Schedule

0DE9

GTIN

785901693109

Returnability

Yes

Country of origin

CN

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

4.17 in (10.6 cm)

Package 1 Width

2.13 in (5.4 cm)

Package 1 Length

2.17 in (5.5 cm)

Package 1 Weight

6.17 oz (175 g)

Unit Type of Package 2

CAR

Number of Units in Package 2

10

Package 2 Height

4.45 in (11.3 cm)

Package 2 Width

4.61 in (11.7 cm)

Package 2 Length

11.02 in (28.0 cm)

Package 2 Weight

3.23 lb(US) (1.464 kg)

Unit Type of Package 3

PAL

Number of Units in Package 3

1920

Package 3 Height

47.24 in (120.0 cm)

Package 3 Width

39.37 in (100.0 cm)

Package 3 Length

47.24 in (120.0 cm)

Package 3 Weight

758.59 lb(US) (344.09 kg)

California proposition 65

WARNING: This product can expose you to chemicals including: carbon black, which is known to the State of California to cause cancer, and Bisphenol A (BPA), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

REACh Regulation

REACh Declaration

REACh free of SVHC

Yes

EU RoHS Directive

Toxic heavy metal free

Yes

Mercury free

Yes

China RoHS Regulation

China RoHS declaration

RoHS exemption information

Warranty

2 year
