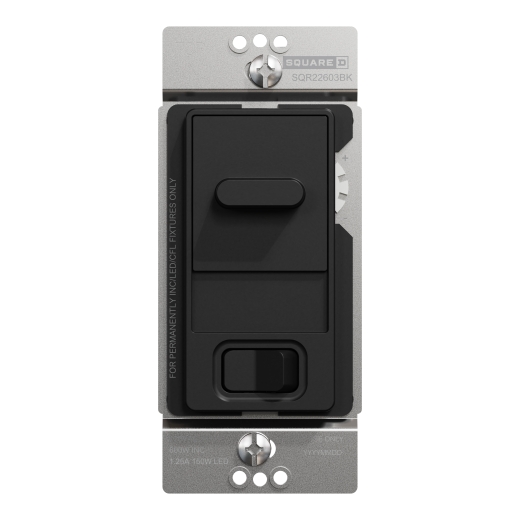

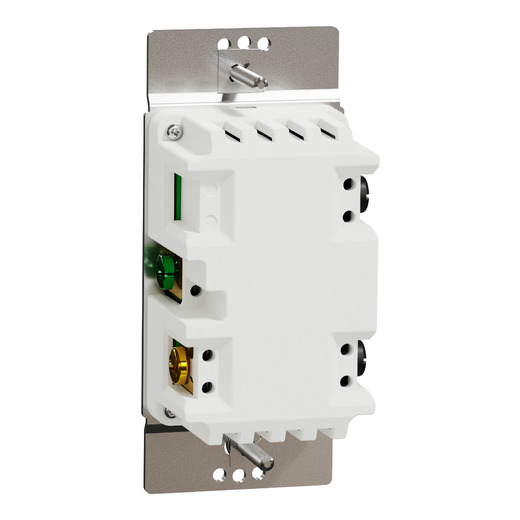

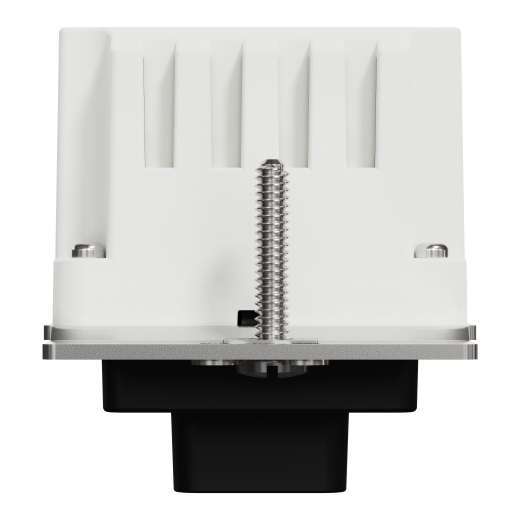

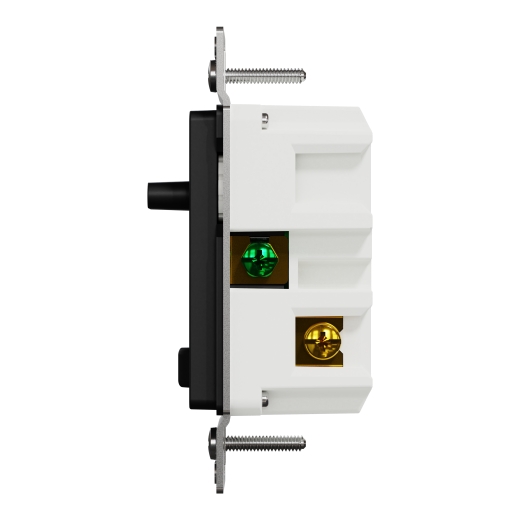

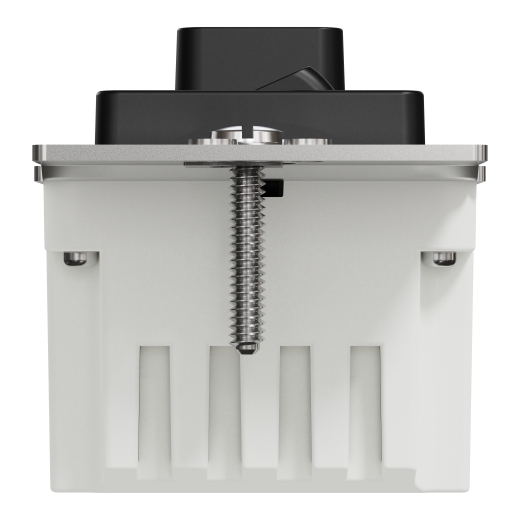

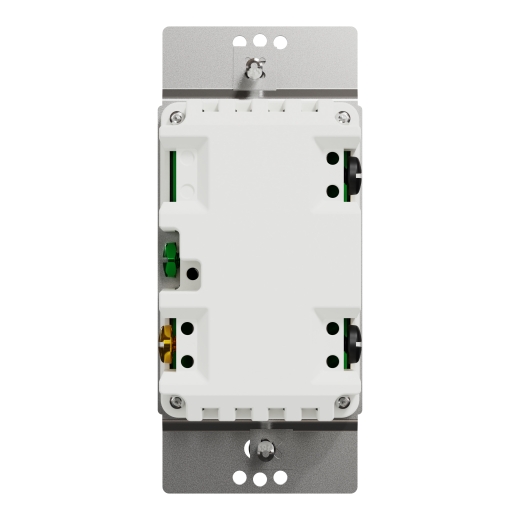

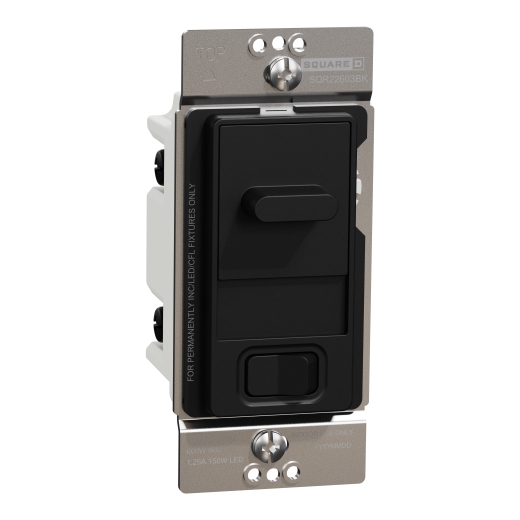

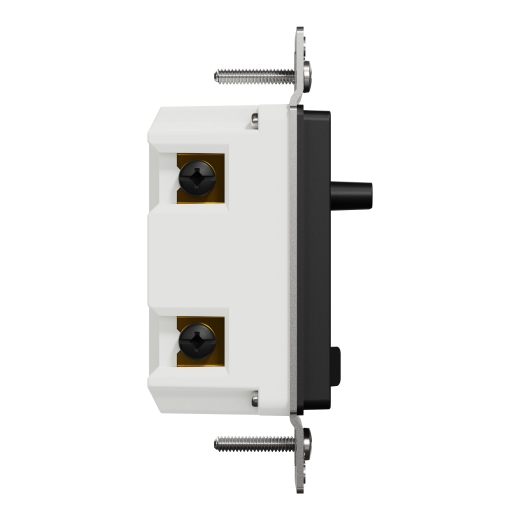

X Series 15A 600W Single Pole/3 Way Slider Dimmer Matte Black

SQR22603BK

$30.00

X Series 15A 500W Single Pole/3-way Slider Dimmer Matte Black
For incandescent, halogen, and LED bulbs up to 500W
Eliminates flickering on LED lights
Sold individually
Matte finish in multiple color options
High-impact resistant and durable thermoplastic for long-lasting product life
Compliant with RoHS directive, for non-hazardous materials
Neutral wire required for operation
Wall plate required, sold separately

View all Specifications

X Series 15A 600W Single Pole/3 Way Slider Dimmer Matte Black

Frequently Bought Together

X Series 15A Single Pole/3 Way WiFi Energy Monitoring Rocker Switch Back Wire Clamps Matte White

X Series 1 Gang Standard Size Screwless Wall Plate Matte White

X Series 15A 500W Single Pole Occupancy/Humidity Sensor Light & Fan Control Back Wires Matte White

undefined

Frequently Bought Together

X Series 15A Single Pole/3 Way WiFi Energy Monitoring Rocker Switch Back Wire Clamps Matte White X Series 15A Single Pole/3 Way WiFi Energy Monitoring Rocker Switch Back Wire Clamps Matte White

X Series 1 Gang Standard Size Screwless Wall Plate Matte White X Series 1 Gang Standard Size Screwless Wall Plate Matte White

X Series 15A 500W Single Pole Occupancy/Humidity Sensor Light & Fan Control Back Wires Matte White X Series 15A 500W Single Pole Occupancy/Humidity Sensor Light & Fan Control Back Wires Matte White

undefined

Expect more from your wiring devices

From dimmers to sensors and beyond, X series changes expectations of what an everyday wiring device should be able to do

Switches

switch + wall plate displayed above

Swap and upgrade the plates without the need to remove the switch from wall
Supports single pole, three way, and four-way switches.

Sensors

sensor + wall plate displayed above

Detect both occupancy and vacancy in one device
Adjust timing for fans and lights
Set relative humidity levels
Manual control at any time

Wall plates

Remove and replace plates easily
Extend product lifetime with super durable polycarbonate resin
Achieve a modern look with flush profiles and matte finishes
Keep wall plates clean, with flat surfaces that wipe down easily

Outlets

outlet + wall plate displayed above

Speed up wiring with “no-wrapping” screw installation and self-grounding clip
Make kitchens and bathrooms safer with GFCI receptacles that self-test every 3 seconds
Elevate safety with tamper-resistant discreet black shutters

Range: Square D X Series
Product or Component Type: Dimmer
Device Application: Control
device presentation: Mechanism with fixing frame
Aesthetic name: X Series
Actuator: Slide
Colour tint: black
Number of gangs: 1 gang
Number of poles: 1
Number of way: 3
[Ie] rated operational current AC: 5 A
[Ue] rated operational voltage: 120 V
Network type: AC
Network Frequency: 60 Hz
Load type: Halogen 5...500 W
Incandescent 5...500 W
Dimmable LED 0...150 W
Mounting Mode: By screws
device mounting: Flush
Material: Plastic: strap
Metal: fixing frame
Main colour tint: Black
Surface treatment: Painted
Surface Finish: Matte
Connections - terminals: Phase and neutral 4 screw terminal copper
Earth 1 screw terminal copper
Width: 1.77 in (45 mm)
Height: 4.06 in (103 mm)
Depth: 1.97 in (50 mm)
Quantity per Set: 1 piece
Market Segment: Residential
Targeted channel: Distributor
Product Certifications: cULus
Standards: UL 1472
NEMA SSL 7A
Category: US10DE909931
Discount Schedule: 0DE9
GTIN: 785901534938
Returnability: Yes
Country of origin: CN
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 4.17 in (10.6 cm)
Package 1 Width: 2.44 in (6.2 cm)
Package 1 Length: 2.56 in (6.5 cm)
Package 1 Weight: 4.85 oz (137.5 g)
Unit Type of Package 2: BB1
Number of Units in Package 2: 10
Package 2 Height: 4.45 in (11.3 cm)
Package 2 Width: 5.39 in (13.7 cm)
Package 2 Length: 12.60 in (32.0 cm)
Package 2 Weight: 4.23 lb(US) (1.919 kg)
Unit Type of Package 3: CAR
Number of Units in Package 3: 40
Package 3 Height: 13.39 in (34.0 cm)
Package 3 Width: 9.45 in (24.0 cm)
Package 3 Length: 11.65 in (29.6 cm)
Package 3 Weight: 18.24 lb(US) (8.274 kg)
California proposition 65: WARNING: This product can expose you to chemicals including: carbon black, which is known to the State of California to cause cancer, and Bisphenol A (BPA), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
REACh Regulation: REACh Declaration
REACh free of SVHC: Yes
EU RoHS Directive: Compliant
Toxic heavy metal free: Yes
Mercury free: Yes
China RoHS Regulation: China RoHS declaration
RoHS exemption information: Yes
Warranty: 2 years
